LT Pro3 Bimini T-top anodized frame W/ black canopy

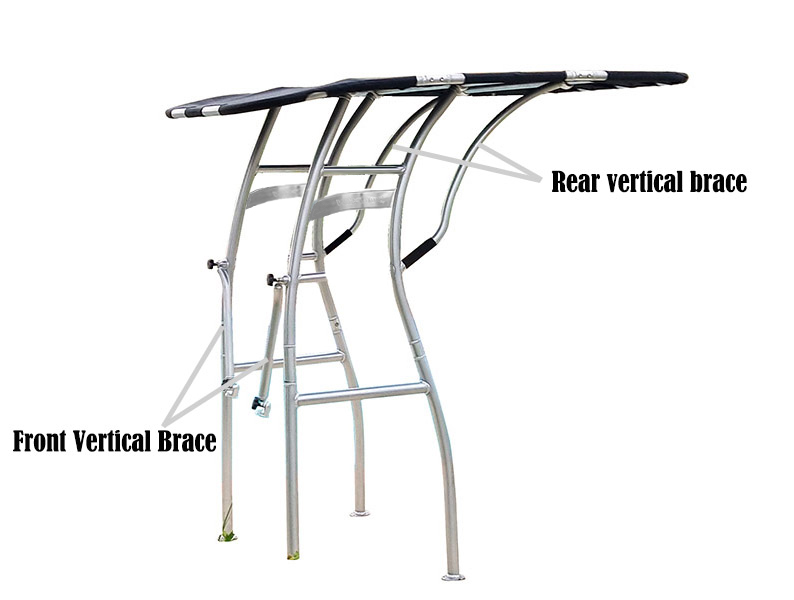

Pro3 t top is designed for those who often drive on rough water. The extended handles grab the top frame which can work as a vertical brace in rear; The front vertical brace can attach to the center console at any angle. With vertical brace both front and rear, this t top can sustain driving on any raugh water.

Features

Center Console Alloy or fibreglass 18ft to 25ft
Attaches direct to your floor.
4 x standoffs lock into console.

2x vertical brace in front.
Removable canopy, zipper and velcro.
2 inch heavy duty frame
Extended long large grab handle
Quick release for storage.

Dimensions

83 inches high
Up to 50 inch wide consoles
82 inches long x 61 inches wide canopy
28 inches front to rear feet center to center.
Lowering the T Top

Front leg loosen the middle bolt.
Remove the top and bottom bolt from the joint
Remove the bolt from the rear leg.
Pivot the T Top forwards.
If needed you can remove bolt from top frame joint
See picture in gallery

Materials

2 inch heavy duty anodised 6063 alloy frame.
CNC Machined 6061 Alloy fitting.
Marine grade VIII, UV resist canopy.

Finish

Anodized
Black color Material
